Appendix F
FCFs by Time of Night

Figure F.1 shows the Beam (Peak) FCFs at 450 and 850 μm as a function of UT time for observations of the primary calibrator, Uranus along with secondary calibrators CRL 2688, and CRL 618. The Peak FCF is larger in the evening and morning primarily because thermal deformations of the dish dilute the flux from the main beam into the secondary (error) component (see Mairs et al. 2021 [16]). There is no significant change to the Arcsecond FCFs in the early evening or late morning.


pict pict

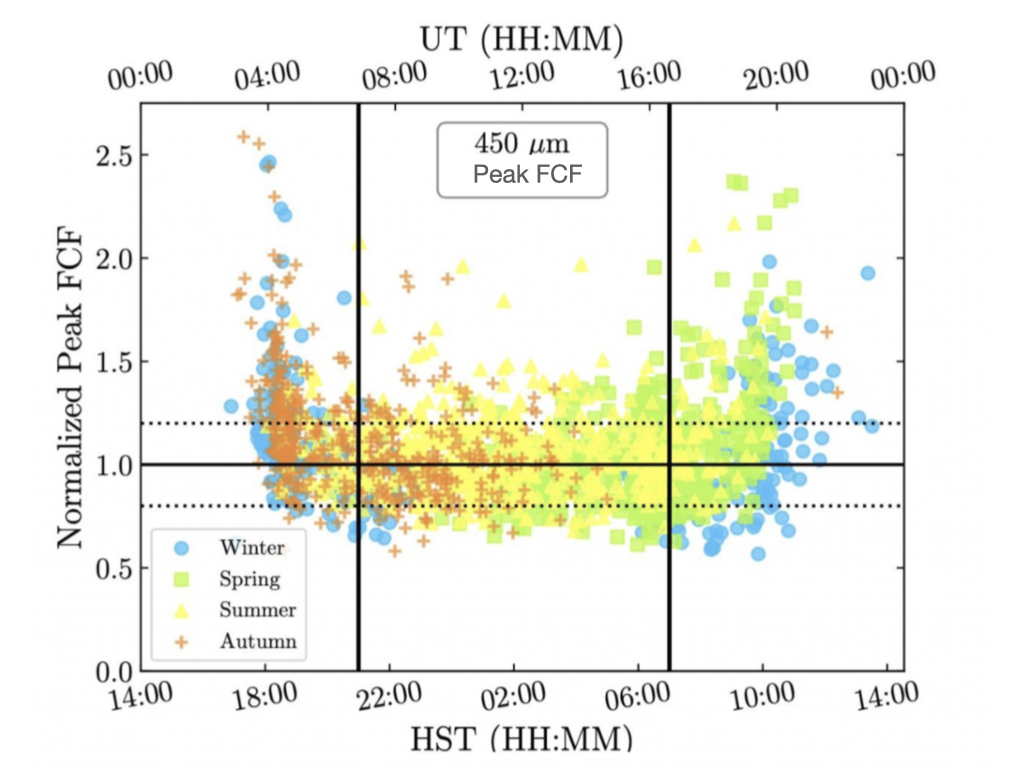

Figure F.1: The Normalized Peak FCFs at 450 (left) and 850 μm (right) as a function of observation time. All FCFs are derived using the primary calibrator Uranus and secondary calibrator CRL 2688. The vertical lines mark the beginning and end of the “stable” observation period from 07:00—17:00 (UTC). The horizontal (dotted) lines show the FCF uncertainties derived for the stable observation period around a value of 1.0 (horizontal, solid line). Data are coloured according to season.


Figure F.2 show the Peak FCF trends in detail for evening and morning observations of Uranus and CRL 2688. The data are bootstrap-fitted with linear functions and “rs” indicates the Spearman rank correlation of the fit.


pict pict
pict pict

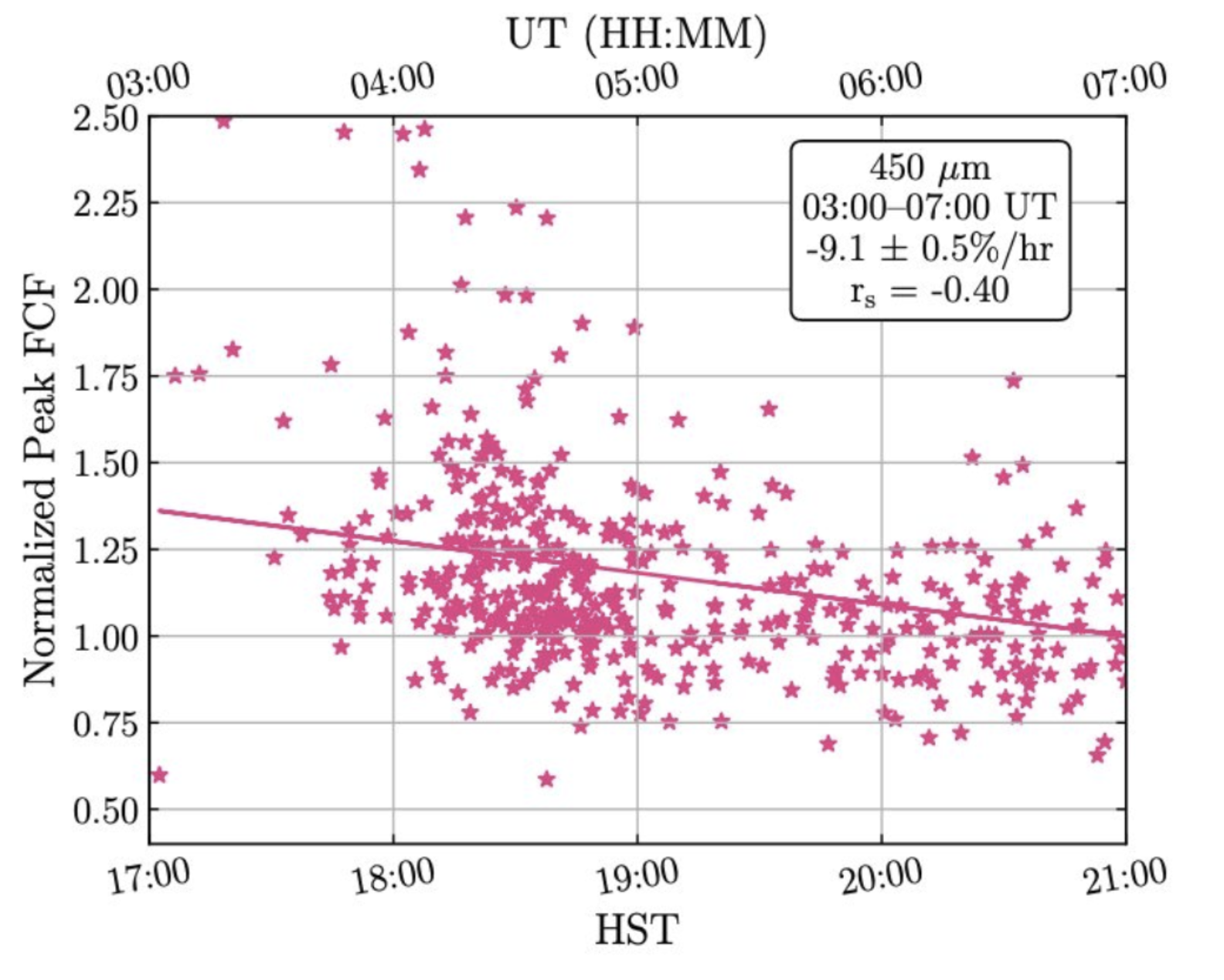

Figure F.2: Linear fits to the Peak FCFs at 450 μm (left) and 850 μm (right) during the evening (top) and morning (bottom) when dish distortions caused by thermal gradients affect the beam shape. The distributions during the stable part of the night (07:00–17:00 UTC) show no significant slope and therefore require no corrections to the default FCFs shown in Appendix E.


The Peak FCFS DECREASE in the evening as the ambient temperature cools and the dish settles, while the Peak FCFS INCREASE in the morning as the ambient temperature warms and the dish becomes unstable to thermal gradients. Table F summarises the rate of change. As of Starlink Release 2021A, Orac-dr does not apply these corrections by default. If you wish to apply these corrections, the FCFs must be modified manually (see Section 8.1.3).





Wavelength
Time Range (UTC)
Peak FCF Correction (% hr1)



450μm 03:00–07:00 9.1 ± 0.5
450μm 17:00–22:00 7.2 ± 0.6



850μm 03:00–07:00 3.2 ± 0.1
850μm 17:00–22:00 3.1 ± 0.1
